Lot 2 of Grand Paris Express Line 16, France

TBM comes back to France, the birthplace of TBM technology

The Line 16 of Grand Paris Express is one of the four new lines of the Grand Paris Express. Located in the Seine-Saint-Denis department, stretching from Saint-Denis Pleyel to Noisy-Champs, it will connect the northern and eastern suburbs of Paris. It is 275 kilometers long and boasts 10 stations.

Project Background

As an important connection of the automatic super metro network in the Paris suburbs and a part of the development plan of the Paris metropolis, the project will ease the increasing passenger flow between the Paris suburbs and relieve the saturation of several radial rail transit lines.

right side

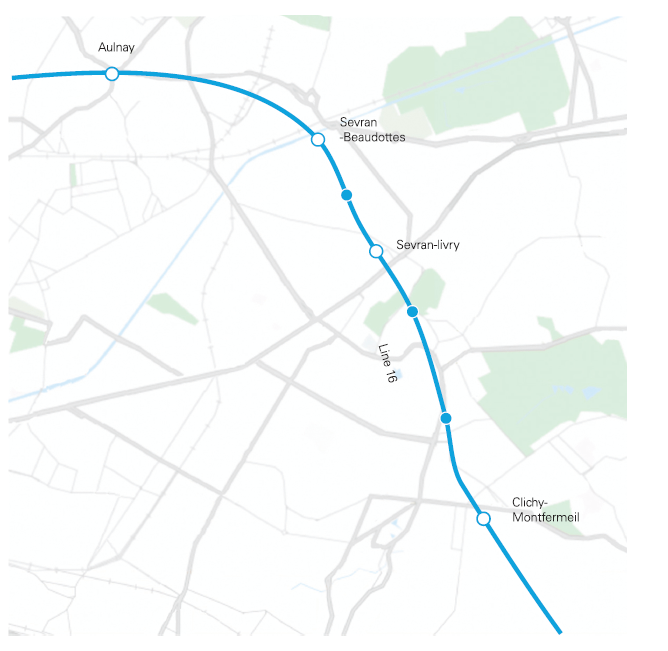

Grand Paris Express Line 16 Lot 2 Route

Project Information

Tunnelling length: 5,800 m and 5,300 m
Geology: Granular gypsum, silty clay, gypsum marl, limestone and sand
Contractor: Webuild-NGE JV

TBM Parameter

TBM type: EPB TBM
TBM S/N: CREC,777/778
Boring Dia: 9.86 m
Main drive power: 3,850 kW
FAT date: December, 2019
Best performance: 36 m per day

Project Characteristics

Overburden ranging from 8 to 52 m
Max. water pressure reaches 5 bar
