Product Introduction

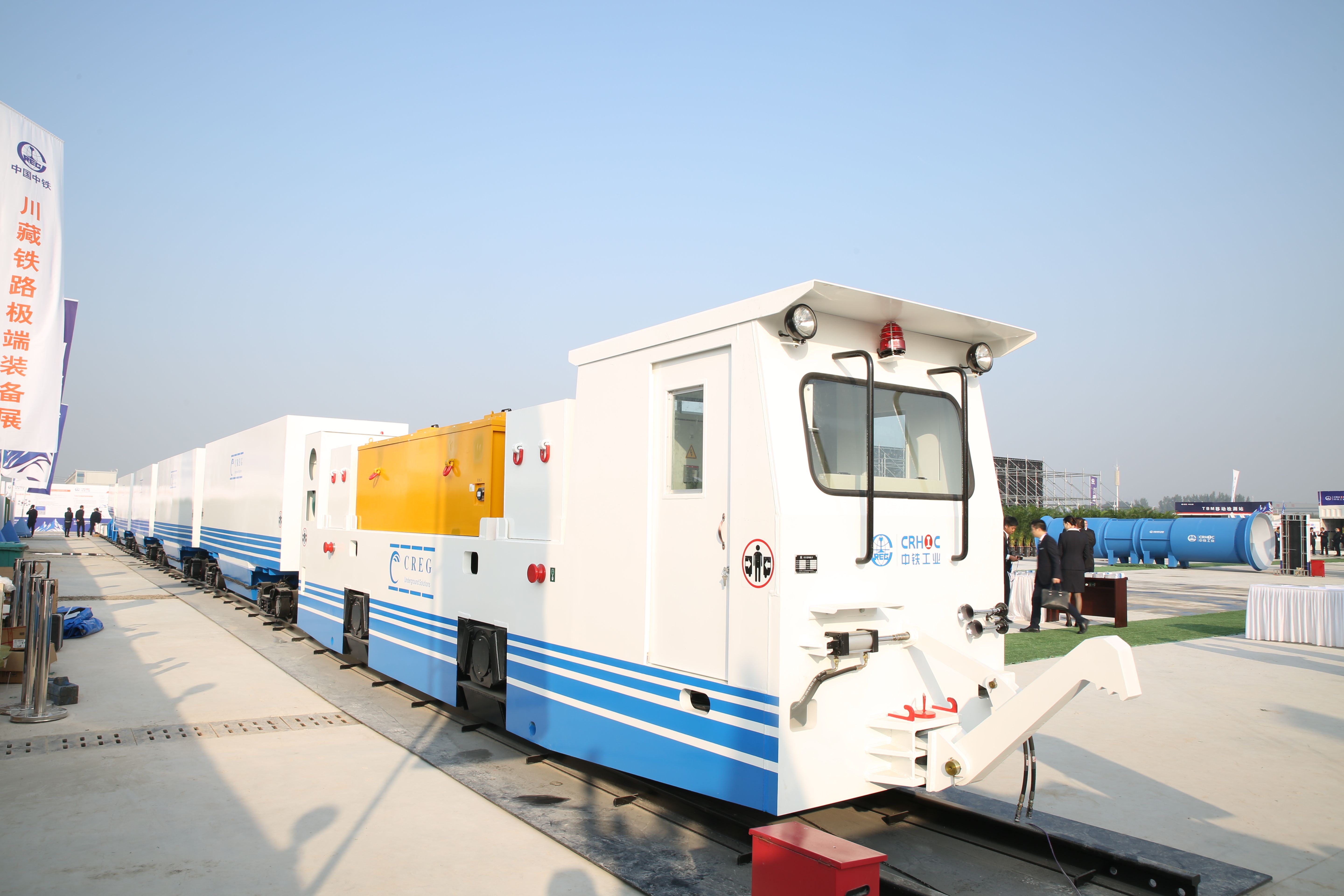

Since entering the tunnel construction transportation equipment field in 2010, China Railway Engineering Equipment Group Co., Ltd. (CREG) has gradually developed conventional, plateau-type and intelligent horizontal transportation marshalling trains, as well as rubber-tired carrier products through the unremitting efforts of its employees.
For steep-gradient rail transportation scenarios, we have developed the "Climber" composite marshalling train, making us a leading enterprise in the industry.
We have delivered over 1,400 sets of equipment, covering nearly 32 major cities and regions across China, holding more than 50% of the domestic market share and ranking first in China.
Meanwhile, our products have been exported to more than 20 countries including Singapore, India, South Korea, the United States and Russia, and have been widely recognized internationally.
MAIN BENEFITS
1. The horizontal transportation marshalling train is equipped with a stable control system and a wealth of optional functions. It integrates the following core features:
2. Triple-function Air Circuit & Electric Braking: Matched with anti-skid brake system for safer and more reliable braking performance
3. Anti-drowsiness Function: Prevents driver fatigue-induced risks during long-hour operation
4. Overload Protection: Real-time monitoring and protection against equipment overload
5. Anti-runaway Device: Effectively prevents the vehicle from sliding down on slopes
6. Hill-start Assist Control: Standardized slope assist function for stable starting on steep gradients
7. Automatic Parking Function: Enables automatic parking and holding on flat or sloped surfaces
8. Speed Deviation Monitoring: Real-time monitoring of vehicle speed deviation for safe operation
9. Wireless (Wired) Monitoring: Supports both wireless and wired on-board monitoring
10. Driving Data Recording: Continuously records operation data for traceability and maintenance
11. Automatic Speed Limit & Stop: Enforces automatic speed limit and emergency stop when needed
12. Line-of-sight Remote Control: Supports remote control within visual line of sight
13. Electronic Nameplate: Digital electronic nameplate for equipment information management
14. On-the-move Mixing: Realizes mixing operation during vehicle traveling
15. Dual-unit Coupling: Supports double-heading operation for marshalling transportation
KEY FEATURES
| Item Name | 25T | 45T | 60T | 80T | 100T |
| Overall Dimensions (mm) | 7080×1500×2300 | 8100×1500×2300 | 8990×1550×2500 | 10000×1600×3000 | 10000×1800×3000 |
| Gauge (mm) | 762/900 | ||||
| Traction Motor Power (kW) | 75×2 | 110×2 | 160×2 | 90×4 | 110×4 |
| Control Method | DC-AC | ||||
| Continuous Speed (km/h) | 8 | 8 | 8.5 | 6 | 6.5 |
| Maximum Speed (km/h) | 11.7 | 12 | 12.7 | 10 | 10 |
| Minimum Turning Radius (m) | 25 | 25 | 30 | 30 | 30 |
