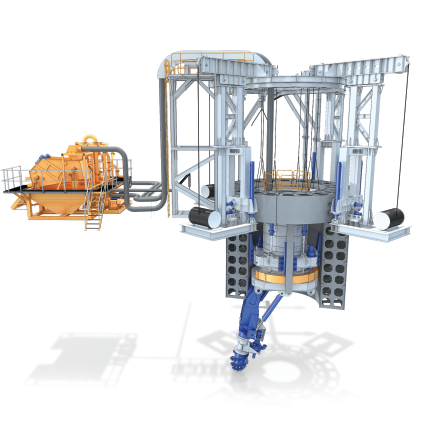

Vertical shaft sinking machine
Compact Caisson Technology Applicable to All Geological Conditions
| Geology | Soft soil, heterogeneous strata and rock formations |
| Diameter | 7-25m |
All advantages at a glance:
It is applicable to stable soft soil strata with a compressive strength below 70 MPa. The maximum sinking depth can reach150 meters under groundwater conditions. Adopting the synchronous operation process, the equipment features a fast tunnelling rate. With flexible layout of machinery and equipment, it can be deployed in confined spaces.
Functions
Vertical Shaft Sinking Machine (VSM) enables highly efficient shaft construction and is suitable for all strata with a compressive strength of up to 70 MPa. This unique mechanical shaft sinking technology offers significant advantages especially under groundwater conditions.

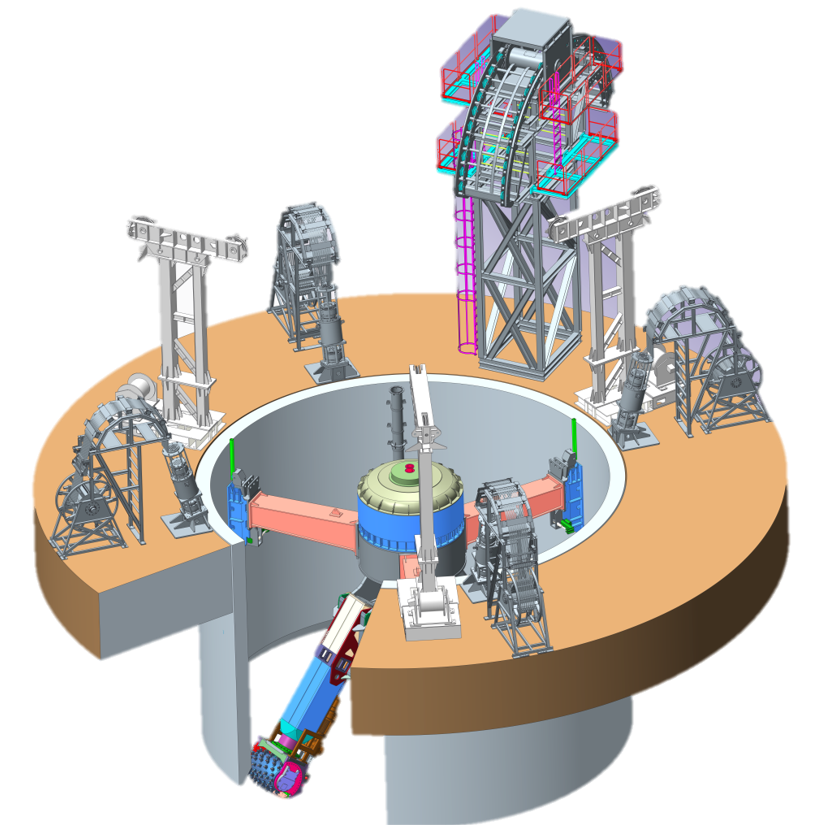

Product Example
1
2
3
4
5
6
7
8
Application Example
