Pipe Jacking Shield Machine Solutions for Challenges in Super‑long Water Diversion Tunnel Construction

Given the super‑long distance and high abrasiveness of the project, the TBM features a specialized pipe jacking shield machine design. It initially employs a pipe jacking mode for single jacking, and once the jacking force reaches its limit, it switches to the TBM mode to maintains construction progress, effectively fulfilling the requirements of long‑distance tunneling tasks. During the actual construction process, the machine advanced 1,136m in pipe jacking mode before reaching its maximum jacking force. It then switched to the TBM mode to complete the remaining 451m, ultimately achieving a breakthrough for the entire project line.

Project Background

This project is a key livelihood initiative in Changsha City, primarily aimed at addressing the water supply challenges faced by districts on the west bank of the Xiangjiang River due to the city's westward expansion. It holds significant strategic importance for ensuring the safety and reliability of the water supply in this area. The pipe jacking shield machine employed in this construction section effectively addresses the specific requirements of non‑excavation, small diameter, long‑distance, and curved jacking for urban underground pipe network construction. In the future, it is anticipated to be extensively used in the construction of underground pipe networks for urban drainage, electricity, and gas, thereby significantly improving the mechanization of urban underground infrastructure projects.

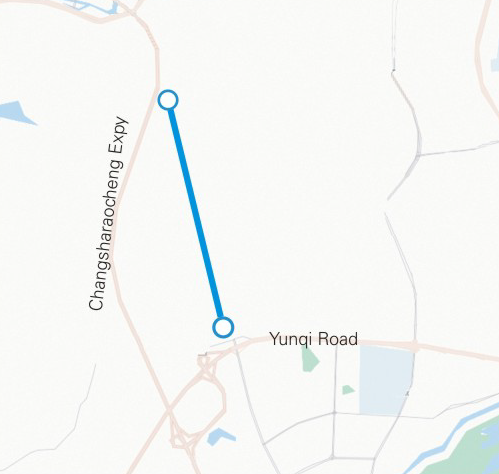

Changsha Leifeng water plant raw water pipeline project route

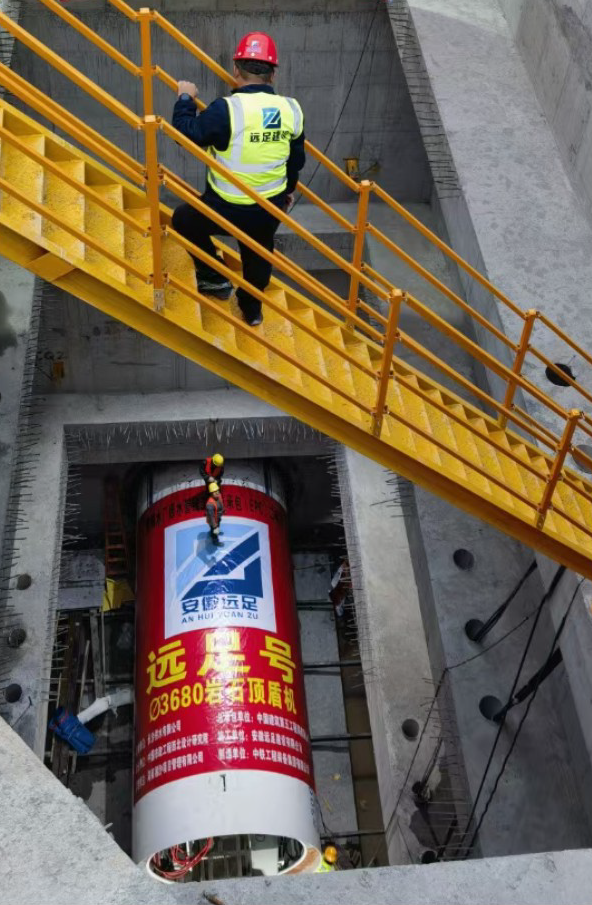

The pipe jacking shield machine meets municipal pipe gallery excavation.

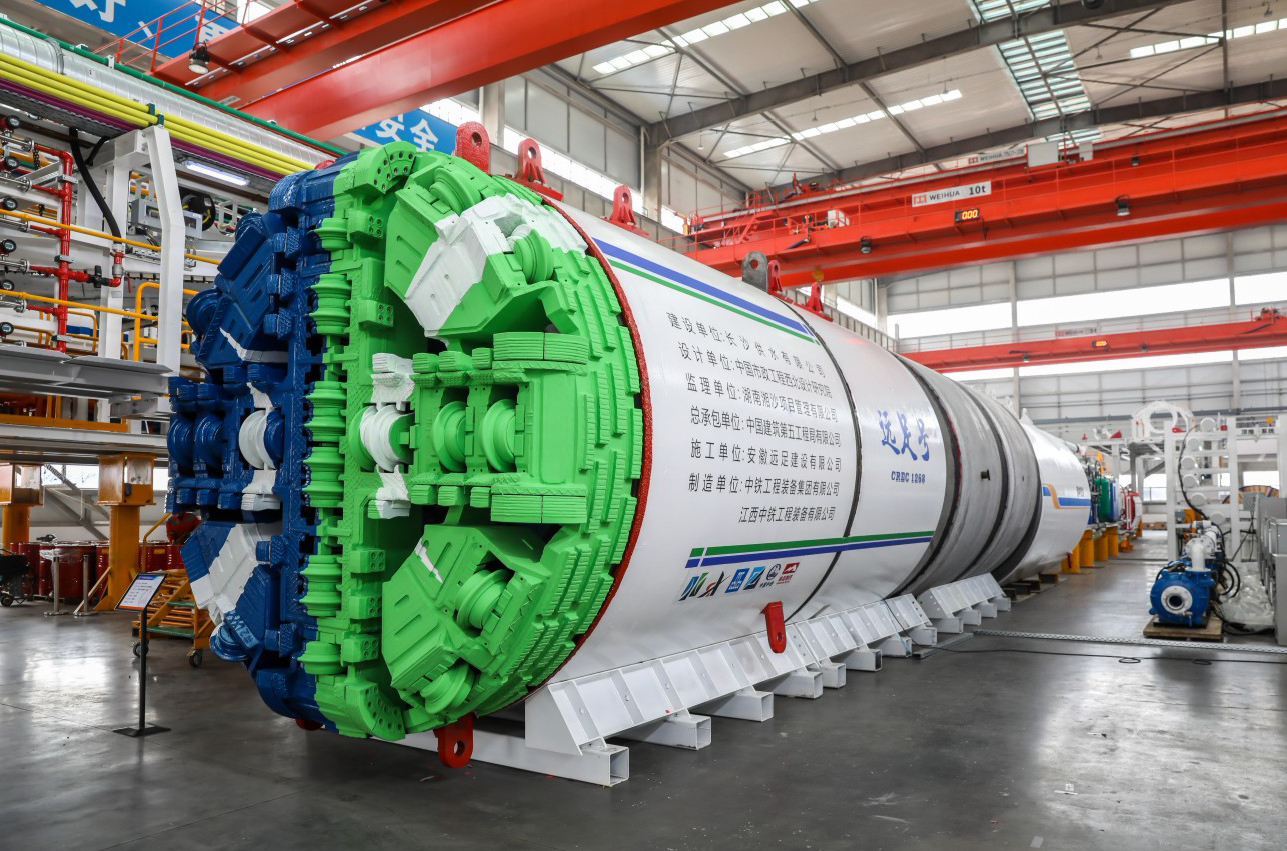

Pipe jacking shield machine "CREG 1268" rolled off the production line.
