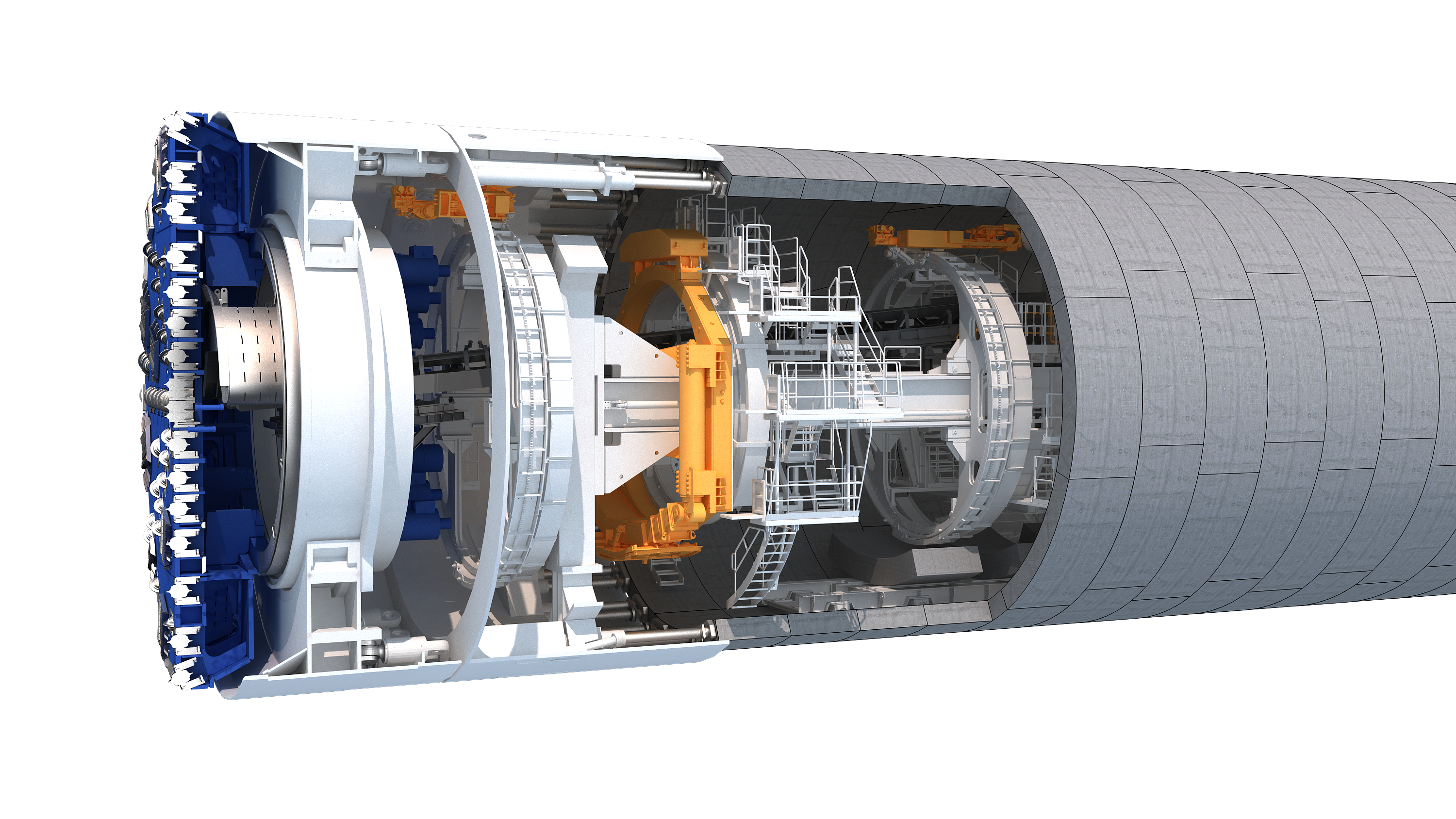

Single Shield TBM
TBM adaptable to all kinds of complex operating conditions
| Geology | Rock Low-strength, brittle rocks to hard basalt |
| Diameter | 2.5-15m |
All advantages at a glance:
1. It maintains high tunneling efficiency under diverse surrounding rock conditions.
2. It maximizes tunneling safety in brittle and unstable rock strata.
3. It is also applicable to water-rich strata after pre-geological improvement.
Functions
Single Shield TBMs represent the optimal tunnelling solution for consolidated rock and other stable, dry geological formations. Equipped with segmental lining or pipe jacking construction techniques, this type of machine can deliver fast tunnelling progress even in low-strength rock strata.

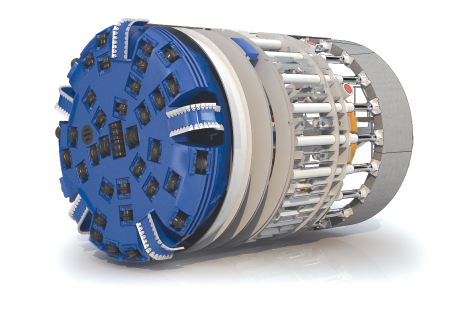

Product Example
1
2
3
4
5
6
7
9
10
11
Application Example
