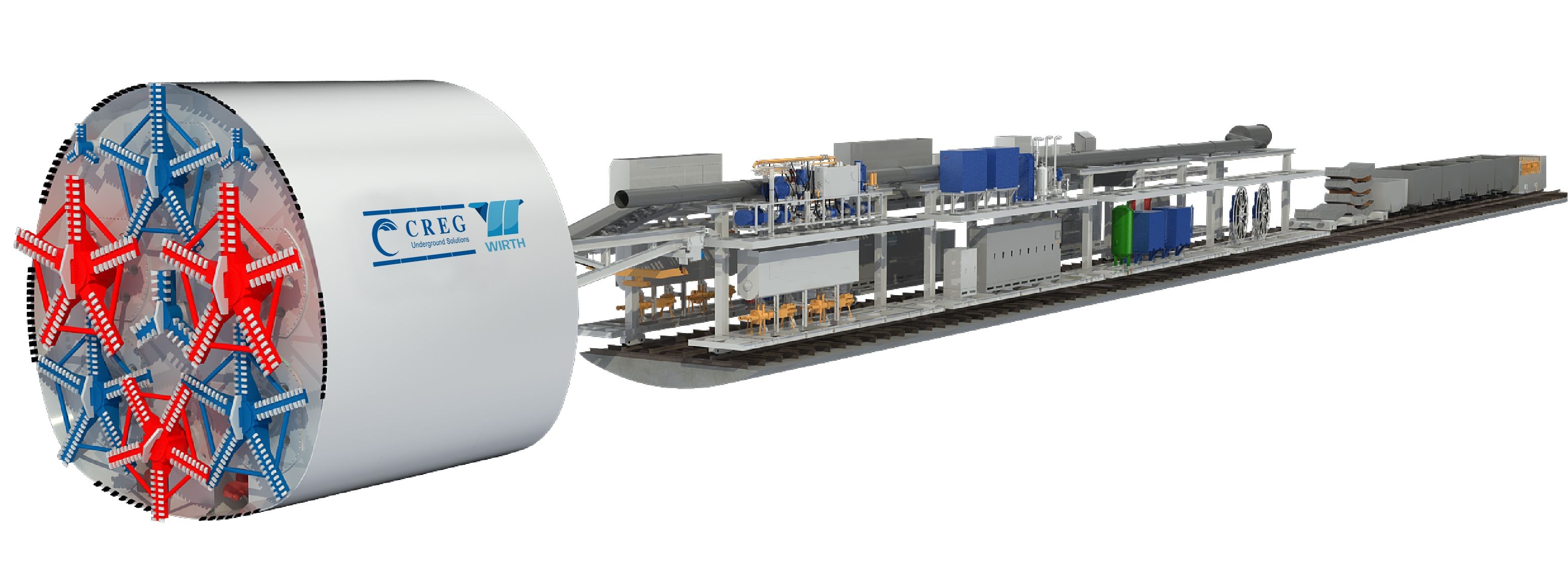

Horse-shoe Shaped TBM
Suitable for Various Soft Soil Strata
| Geology | Soft soil Low-permeability soft soil strata (clay, silt, clayey sand) |
| Diameter | 1-15m |
All advantages at a glance:
It achieves high tunnelling efficiency under wide range of soft soil geological conditions. Its excavation area on the tunnel face is 20% to 30% larger than that of a circular shield machine.
Functions
1.Optimize cross-sectional utilization and improve space efficiency
2.Adapt to confined underground spaces and reduce construction risks
3.Achieve high-efficiency tunnelling in long-distance soft soil strata
4.Optimize lining stress performance and enhance the surrounding rock stability

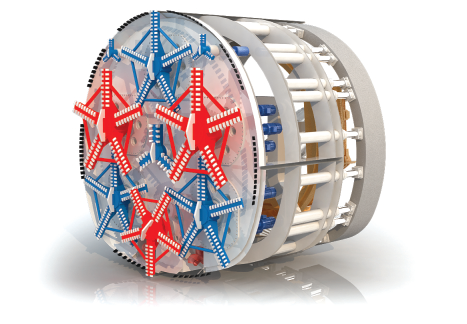

Product Example
Application Example
